Custom Plastic Insert Molding Services
We provide professional insert molding solutions that integrate metal, ceramic, or prefabricated components directly into plastic during injection molding. This process eliminates secondary assembly and delivers higher structural strength, improved reliability, and cost-efficient mass production.
- One-step molding without secondary assembly
- Enhanced bonding strength and vibration resistance
- Lightweight yet structurally reinforced designs
What Is Plastic Insert Molding? Process Overview & Advantages
Insert molding is an advanced plastic injection molding process where metal, ceramic, or threaded inserts are precisely positioned in the mold and encapsulated by molten plastic during injection.
Compared with traditional post-assembly methods, insert molding significantly improves product strength, consistency, and manufacturing efficiency.
- Traditional assembly: manual fitting, loosening risk, higher labor cost
- Insert molding: integrated structure, higher strength, lower total cost

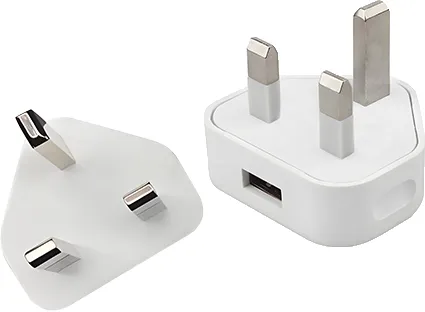

Insert Molding Process: Insert Preparation, Precision Positioning & Cooling Optimization
Insert Pre-Treatment
Ultrasonic cleaning and surface texturing improve bonding strength by up to 40%.
Precision Positioning
Mold alignment accuracy ±0.005 mm with magnetic or vacuum positioning.
Injection Control
Precise control of temperature and pressure prevents insert displacement.
Cooling & Bonding
Optimized cooling ensures strong molecular adhesion and dimensional stability.
Insert Molding Applications in Automotive, Electronics & Medical Devices
- Automotive: Yield rate improved to 99.2%, 30% cost reduction
- Electronics: Copper pin accuracy ±0.015 mm, pull-out force up to 180 N
- Medical & Industrial: Sterilization-resistant housings and joints
Key Insert Molding Design Considerations: Knurling, Mold Structure & Material Compatibility
- Knurled or undercut insert structures improve pull strength by 30–50%
- Modular mold design with ±0.005 mm positioning accuracy
- 100+ validated material combinations including PEEK + stainless steel
- Controlled surface texture for mechanical interlocking
Insert Molding Quality Control: Surface Inspection, Pull Testing & Production Traceability
- Incoming inspection: insert tolerance within 0.02 mm
- Process monitoring: temperature and pressure fluctuation ≤ ±1%
- Finished inspection: 100% surface and dimensional checks
- Performance testing: pull strength and environmental reliability
Why Choose ATRMOLD for Custom Insert Molding Services
- 20+ years of experience in injection molding and precision tooling
- Servo-controlled machines supporting parts from 50g to 5000g
- Advanced inspection equipment including ZEISS CMM systems
- Fast response: process proposals in 3 days, samples in 5–7 days
