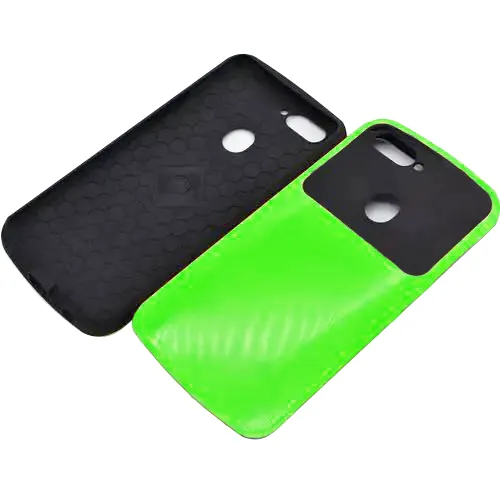

Plastic Injection Overmolding Solutions
Custom Multi-Material Molding Manufacturer
ATRMOLD specializes in precision plastic injection overmolding solutions for multi-material components. With over 20 years of experience, we deliver cost-effective, high-strength, and high-performance custom plastic molding for automotive, medical, electronics, and industrial applications.

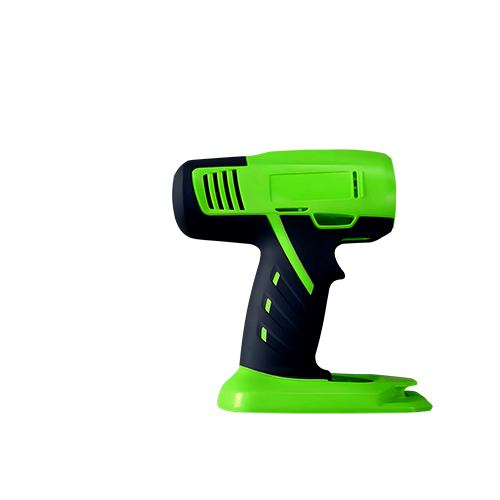

Example: In the tool manufacturing industry, we commonly use ABS as the structural base and overmold it with a TPR soft layer, achieving superior grip comfort and shock resistance.
What is Overmolding?
Plastic overmolding is an advanced injection molding process where one material (usually a plastic or elastomer) is molded over another substrate to form a strong molecular bond. This technique integrates multiple materials and functionalities in a single molding cycle, significantly improving both product performance and visual appeal.
Reduced Assembly
Overmolding eliminates secondary assembly steps, streamlining production and reducing labor costs.
Cost Optimization
Efficient mold design and process control yield 10-20% cost reduction per part compared to traditional assembly methods.
Multi-Material Integration
Combine rigid substrates with soft-touch surfaces in a single manufacturing process.
Enhanced Product Quality
Direct molecular bonding increases mechanical strength and extends product lifespan up to 3×.

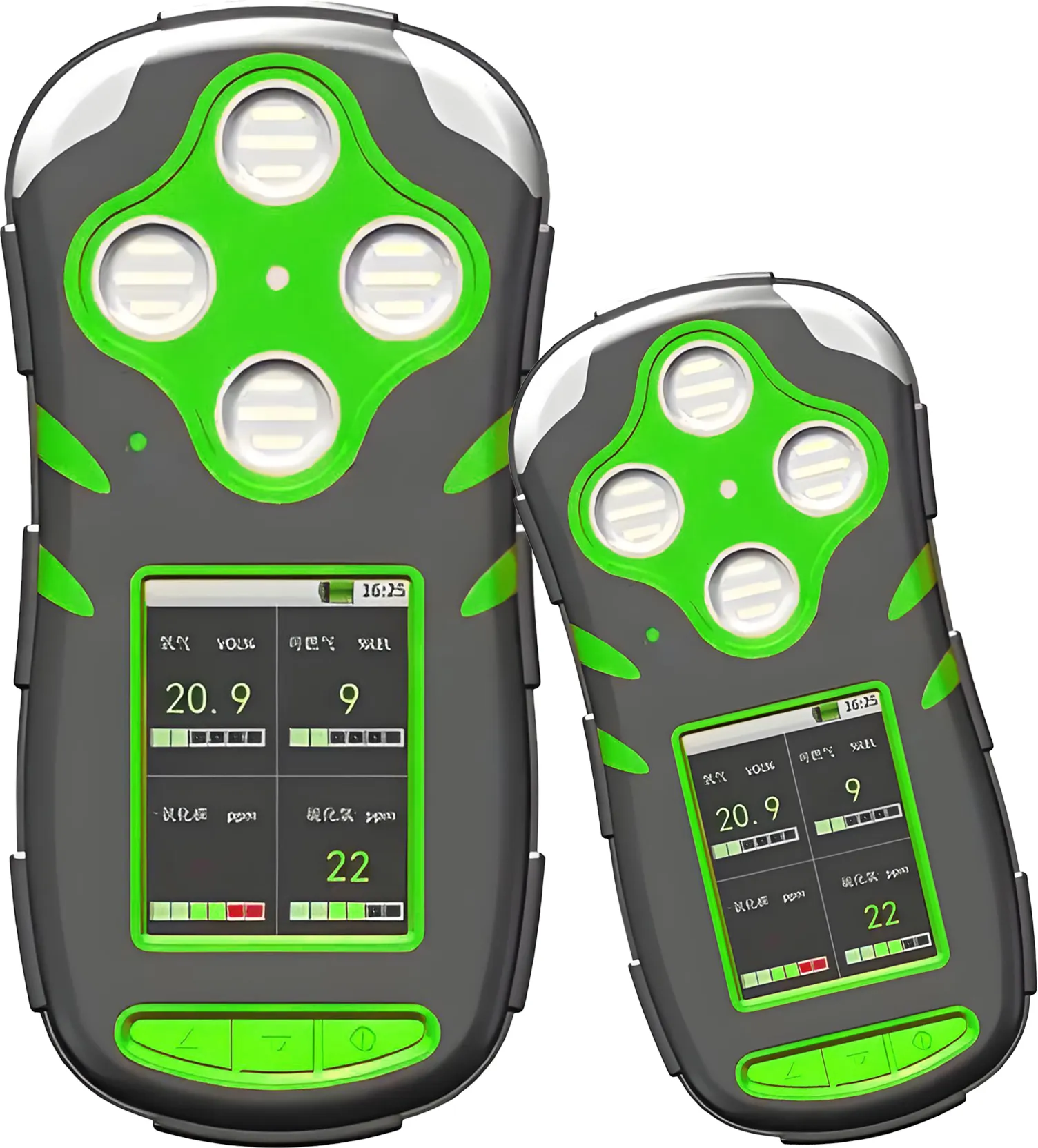

High-Precision Overmolding Process Flow
Based on 20+ years of manufacturing experience, ATRMOLD has developed a high-precision, stable overmolding process:
Design Validation
Select suitable material combinations and perform mold flow analysis to identify potential processing risks.
Substrate Molding
Precision molding of ABS, PC, or PP substrates with servo-controlled injection machines (±2°C control).
Overmolding Process
Injection of TPR, TPE, or silicone over the substrate at optimal bonding temperature (60-80°C).
Quality Inspection
Triple testing: dimensional accuracy, bonding strength, and visual inspection per ISO standards.
Common Materials for Overmolding Processes
Material compatibility directly impacts bonding strength and product lifespan. By optimizing mold design, temperature control, and surface texture, ATRMOLD ensures superior multi-material bonding stability.
ABS + TPR
Tool handles, grips – Structural rigidity with soft-touch comfort
PC + TPE
Electronics housings – Impact resistance with flexible seals
PP + Silicone
Medical devices – Chemical resistance with biocompatible surfaces
Nylon + TPV
Automotive components – High temperature resistance with vibration damping
POM + TPU
Industrial equipment – Low friction with abrasion resistance

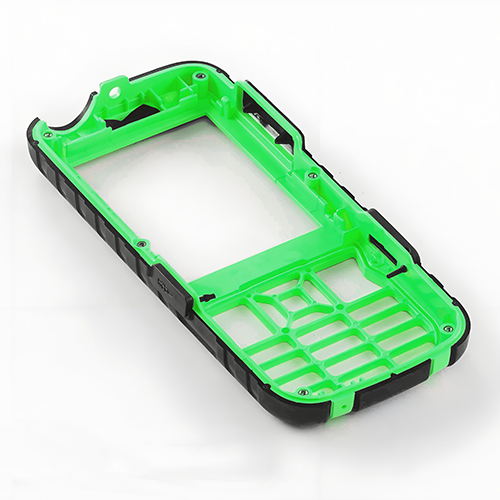

Core Advantages of Plastic Overmolding
- Structural Integration: Multi-component one-time injection molding reduces assembly steps and lowers labor costs
- Cost Optimization: Efficient mold design and process control yield 10–20% cost reduction per part
- Enhanced Quality: Direct bonding increases mechanical strength and extends product lifespan up to 3×
- Flexible Design: Enables functions like insulation, vibration damping, and chemical resistance
- High Efficiency: Multi-material molding reduces cycle time by over 25%
- Aesthetic Excellence: Seamless integration of multiple materials with no visible parting lines

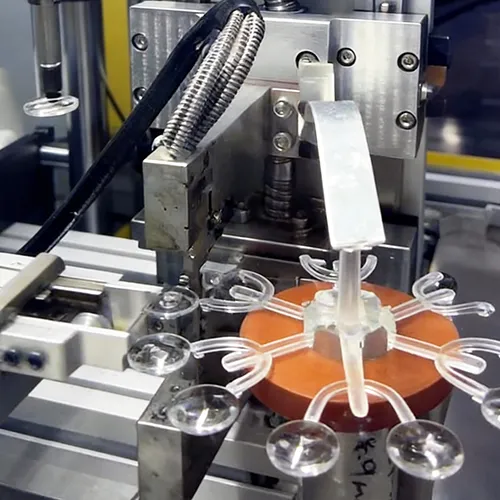

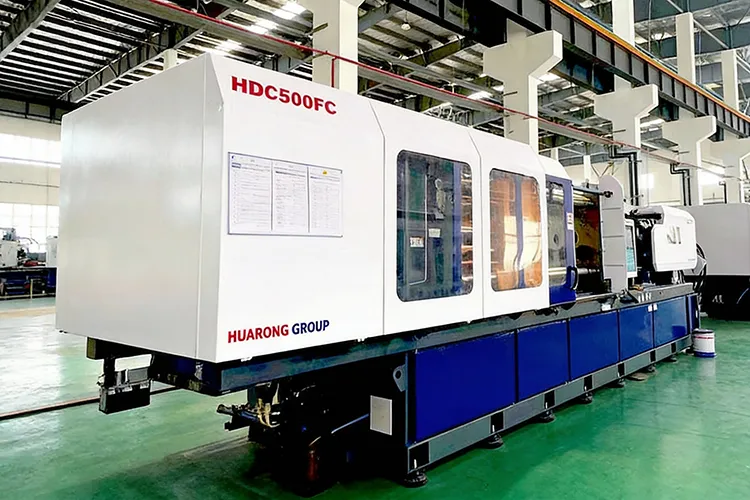

Applications of Overmolding
Our plastic overmolding technology supports a wide range of industries requiring durability, tactile comfort, and precision aesthetics:
Electronics
Smartwatch bezels, game controller grips, sensor housings, waterproof connectors
Automotive
Steering wheel grips, seat knobs, vent blades, sensor casings, interior trim
Medical Devices
Ventilator mask frames, monitor housings, wheelchair handles, surgical tool grips
Home Appliances
Vacuum cleaner grips, iron handles, remote control shells, kitchen tool handles
Industrial Equipment
Machine handles, conveyor seals, switch knobs, protective covers, tool housings
Consumer Products
Sporting goods, power tool grips, eyewear frames, wearable device bands
Overmolding Design and Process Principles
Drawing from extensive experience, ATRMOLD’s engineering team applies these key design principles:
Material Compatibility
Choose plastics with similar thermal and chemical properties to ensure strong molecular bonding between layers.
Surface Optimization
Apply 0.1–0.3 mm micro-textures for improved mechanical bonding between substrate and overmold material.
Thickness Control
Maintain substrate thickness at 1.5–5 mm; overmold layer at 0.8–3 mm to prevent warpage and ensure uniform cooling.
Mold Design Optimization
Use replaceable inserts to extend mold life and ease maintenance, reducing downtime and production costs.
Process Standardization
Establish controlled temperature, pressure, and time databases for consistent batch-to-batch quality.
Bonding Surface Preparation
Ensure substrate surfaces are clean and at optimal temperature (60–80°C) before overmolding for maximum adhesion.
Our Competitive Advantages
Partnering with ATRMOLD means working with a full-process plastic injection and overmolding manufacturer that guarantees precision, quality, and reliability.
- Experienced Engineering Team: 15+ years in injection molding and tooling design
- Advanced Equipment: Servo-controlled machines supporting parts from 50g to 5000g
- Strict Quality Control: CMM, tensile testing, and optical inspections for every batch
- Fast Delivery: Design proposal within 3 days; samples in 5–7 days
- Data-Driven Manufacturing: Real-time monitoring ensures traceability and stability
- Global Supply Chain: Efficient logistics and shipping to customers worldwide
We are committed to precision manufacturing and sustainable production, providing globally trusted plastic overmolding solutions for diverse industries.
